Next Audiocom A504 DSP

The A504DSP combines a lightweight 4 x 500 W (2 x 1000 W) amplifier with a powerful
a DSP processor that can be configured to perform a wide range of tasks,
without the need for additional hardware to support a wide range
loudspeaker systems. Tight integration of processing and amplification allows
the DSP processor to monitor and better adapt to the amplifier's behavior,
making the processing dynamics much more accurate and effective than this
typically achieved with separate components

Maximum flexibility

A504DSP flexibly distributes the total amplifier power in various combinations to four, three or two outputs for control, for example: four full-range speakers or subwoofers, a high-power subwoofer + two full-range speakers, a high-power subwoofer + a bi-amplified speaker or a full-range speaker with high power + high power subwoofer



Designed for professional use, XLR Chassis connectors are manufactured by Neutrik

 Versatile use

The A504DSP is a cost-effective power amplifier that can be used in both...
 route and during installation.



Advanced DSP processor

Built-in advanced DSP engine, controlled by the built-in OLED screen
 with encoder or via PC, with input/output routing, filters
 high-pass and low-pass parametric EQ filters,
compressors/limiters, noise gates and equalization delays.












 Integrated DSP processor

 Integrated DSP controlled by the built-in OLED screen
 encoder eliminates the need for external speaker processors.
 Everything you need to fine-tune the sound of any speaker is here.








 Unique features






Ultra thin design

 The ultra-slim design saves space while maintaining the elegant look you need.




 Minimum impedance 4Ω
To increase the number of speakers connected to a single amplifier channel, you can reduce the amplifier resistance to 4 Ω



 100V Line Output
 Use this amplifier to flexibly power medium to large 100V line array speaker system setups



 Matrix
 The I/O matrix allows the user to easily route each input audio signal to the desired output port.



  Matrix
 The I/O matrix allows the user to easily route each input audio signal to the desired output port.



 DSP

 Integrated digital signal processor (DSP) offers the user the ability to easily equalize the sound and adapt it to the needs of the site/installation



 Dedicated presets

The integrated DSP allows you to have dedicated presets for different situations. You just need to choose which one is most convenient for your application.

 Technical Specifications

• Product type: Class D amplifier with DSP processor

•  Frequency response: 20 Hz - 20 kHz (+0 / -1dB)

•  Amplifier technology: Class D

•  Number of amplifier channels: 4 channels

• Amplifier power - Stereo 8Ω: 4x250 W

•  Amplifier power - Stereo 4Ω: 4x500 W

•  Amplifier power – bridge 8 Ω: 2x1000 W

•  Amplifier power - 100V: 2x1000 W

•  Amplifier gain: 34dB±0.5dB

•  Speaker output: 4 Ω - 16 Ω | 100V

•  Damping factor:>180

•  THD+N:<0.15%

• SNR (Signal to Noise Ratio)>95dB

•  Input sensitivity:0.9V - 1.1V (+0 / -1dBv)

•  Input impedance: Balanced: 20kΩ | Unbalanced: 10 kΩ

•  DSP technology: 4 inputs x 4 outputs - 32 bit | DSP 192 kHz

•  Latency:0.66 ms

•  Adjustable DSP parameters: PEQ, HPF, LPF, HSF, LSF, compressor, gate, level, delay, polarity, mute

•  Delay adjustment

• 62.4 ms / 21.42 m per channel

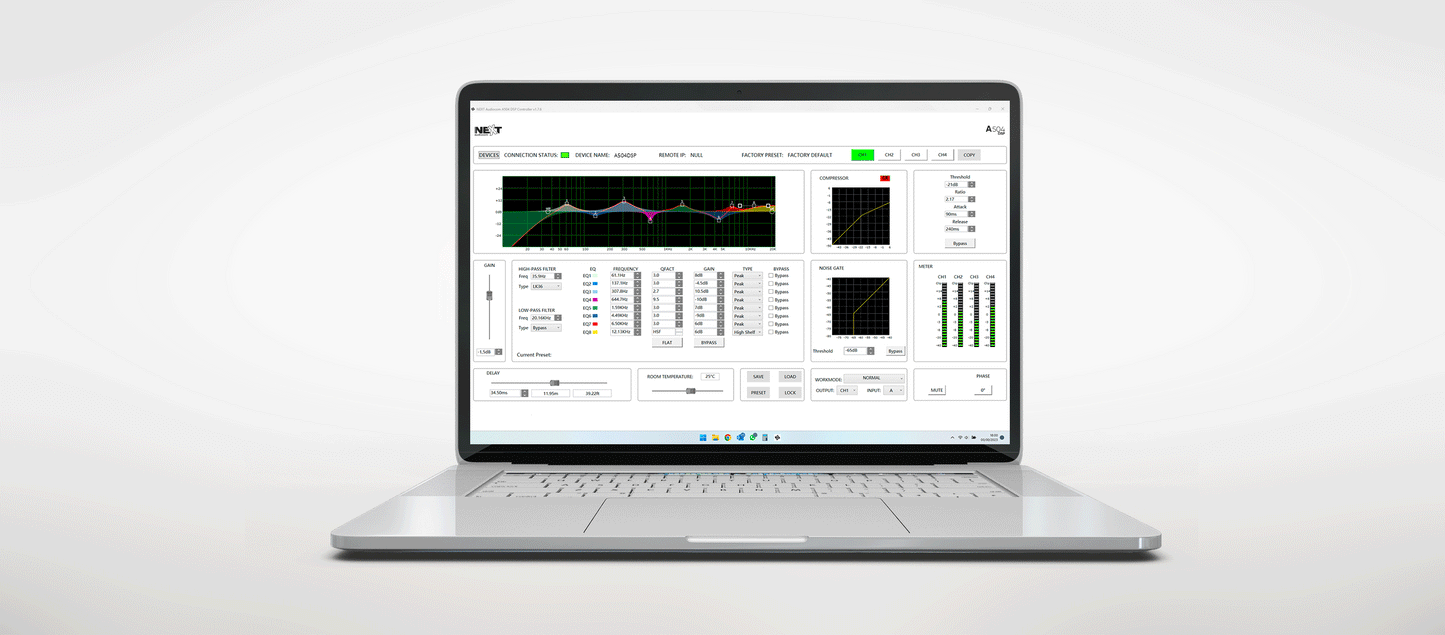

•  Control type: LCD display | Via USB and supplied software "A504 DSP Controller"

•  Audio Signal Inputs: Analog audio

•  Input connectors: 4 x Neutrik XLR

•  Audio signal outputs

•  Speaker output connectors: 4 x Neutrik NL4

• Protections: Full short-circuit, open-circuit protection, thermal, ultrasonic and RF stable under reactive or mismatched loads, on/off, mute, proven crowbar

•  Operating temperature range: 0°C - 40°C

•  Cooling type: Fan with controlled speed

•  Power supply: Switching power supply (SMPS)

•  Power input: AC 110V - 120V | AC 220V - 240V 50Hz/60Hz ±10%

•  Network connector: IEC socket

• Power consumption: 1100 W

•  Armature: rack 1U 19".

•  Dimensions: 483 x 44 x 290 mm

•  Net weight: 6 kg

•  Shipping weight:7.2 kg
